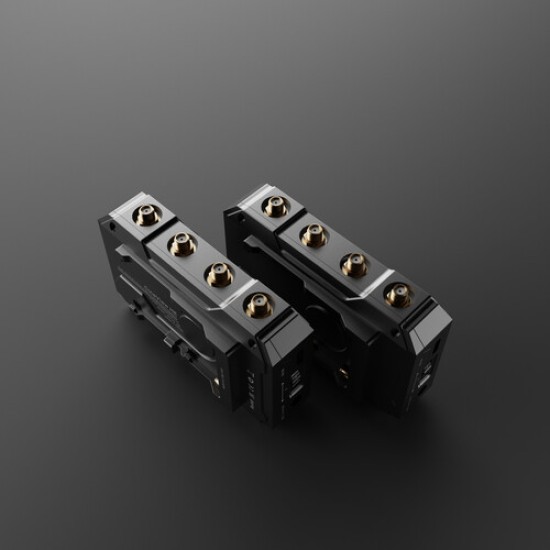

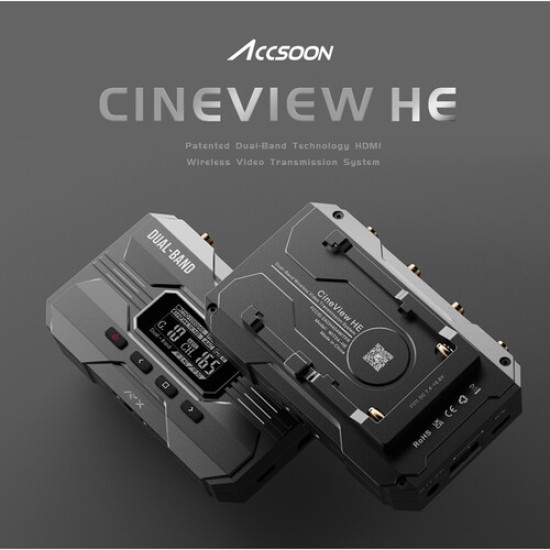

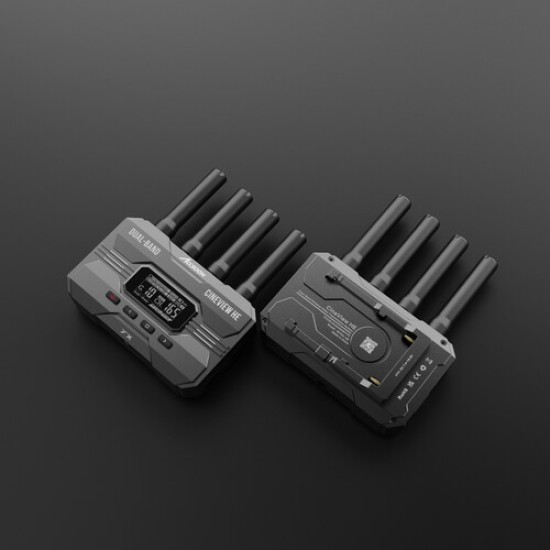

Accsoon CineView HE Multi-Spectrum Wireless Video Transmission System

The CineView HE Multi-Spectrum Wireless Video TransmissionSystem from Accsoon allows you to send a 1080p60 camera signal to the included receiver plus up to three mobile devices. This versatile wireless video transmission system provides a cost-effective way of allowing four people on set to monitor an HDMI camera signal. The transmitter can send signal to a total of four devices simultaneously over distances up to 1200' with only a 60ms delay. You can transmit to any mix of up to four receivers and iOS/Android smartphones and tablets using dual-band wireless signals.

The included dedicated receiver is easy to set up and pair, and it features an HDMI output and a USB UVC output to output your signal to a computer for streaming using third-party apps. The free-to-download companion app provides image tools such as peaking, zebras, false color for exposure, and cube 3D LUT overlay. The transmitter and receiver feature DC and USB-C power inputs, and they also support an optional L-series battery that can power the set for up to 12 hours.

Wireless Transmission

•        Dual-Band 2.4 and 5 GHz wireless transmission
•        Latency less than 0.06s
•        Long-distance transmission range of 1200'
•        One transmitter can connect up to four devices such as receivers, smartphones, or tablets
•        Wireless remote monitoring via Accsoon Go App
•        Automatic channel selection for optimal transmission

Video Input/Output

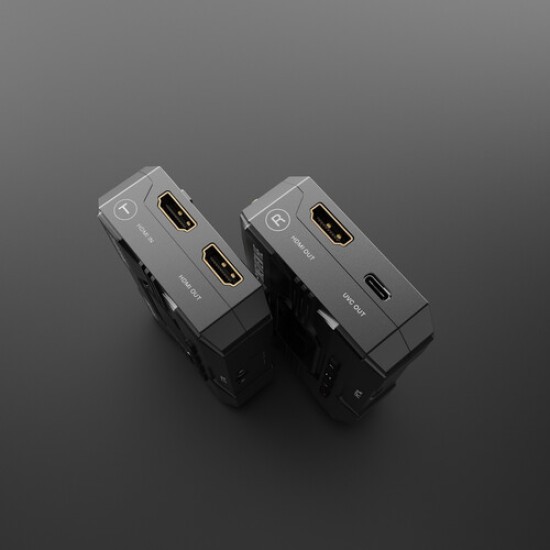

•        HDMI input and loop output on the transmitter
•         HDMI and USB-C/UVC output on receiver for streaming on a computer with third-party apps
•         Up to Full HD 1080p video and high-quality audio transmission

Design

• Fanless design for silent operation

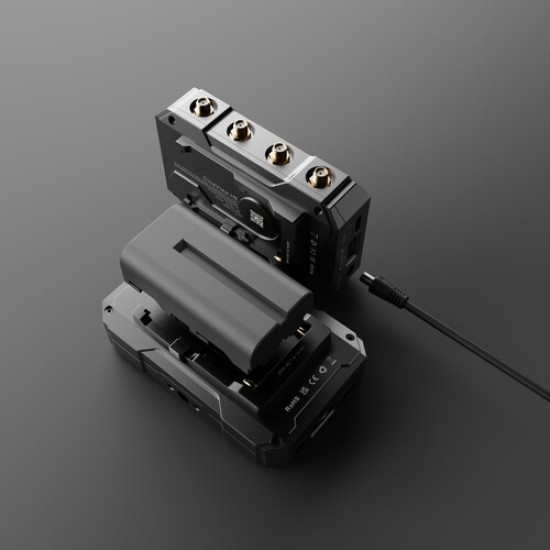

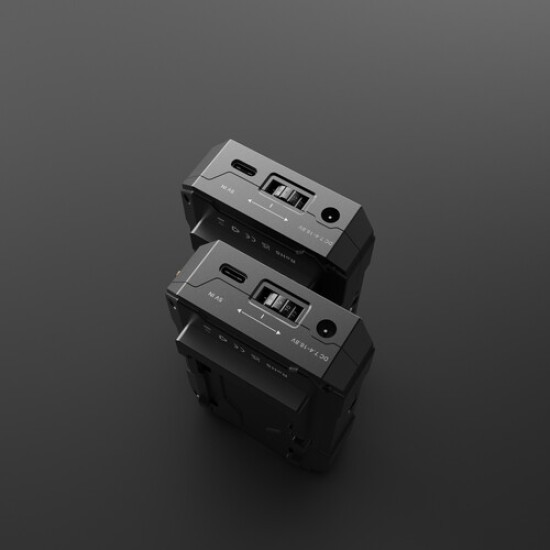

• Power by L-series/NP-F type battery, DC input or USB-C
•        Group pairing knob
•        Bright 1.3" OLED screen
•        Compact, lightweight design with durable aluminum construction
